| Spesifikasi | Deskripsi |
|---|---|
| Kompatibilitas | Fully compatible with original USB-Blaster. Supports CPLD (MAX 3000A, MAX 7000A/B/S, MAX 9000/A, MAX II) and FPGA (Stratix, Cyclone, ACEX, APEX, FLEX series, EPCS/EPC configurations). |
| Voltage Range | 1.0V–5.5V target voltage support. |
| Mode Operasi | JTAG, AS (Active Serial), PS (Passive Serial). Supports Nios II embedded core debugging and Quartus II SignalTap II Logic Analyzer for real-time logic analysis. |
| Kecepatan | 6x faster than ByteBlasterII for high-performance programming. |
| Antarmuka & Indikator | USB 2.0 interface with Power/Status LED. Compact size: 5.5cm × 2.8cm × 1.5cm (2.17” × 1.1” × 0.59”). |

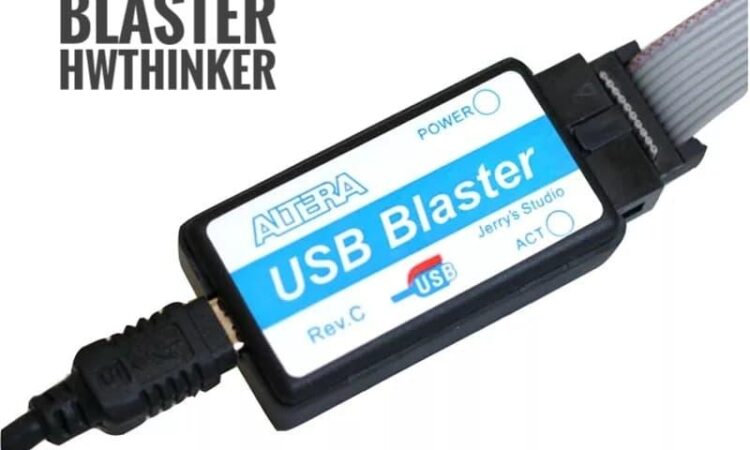

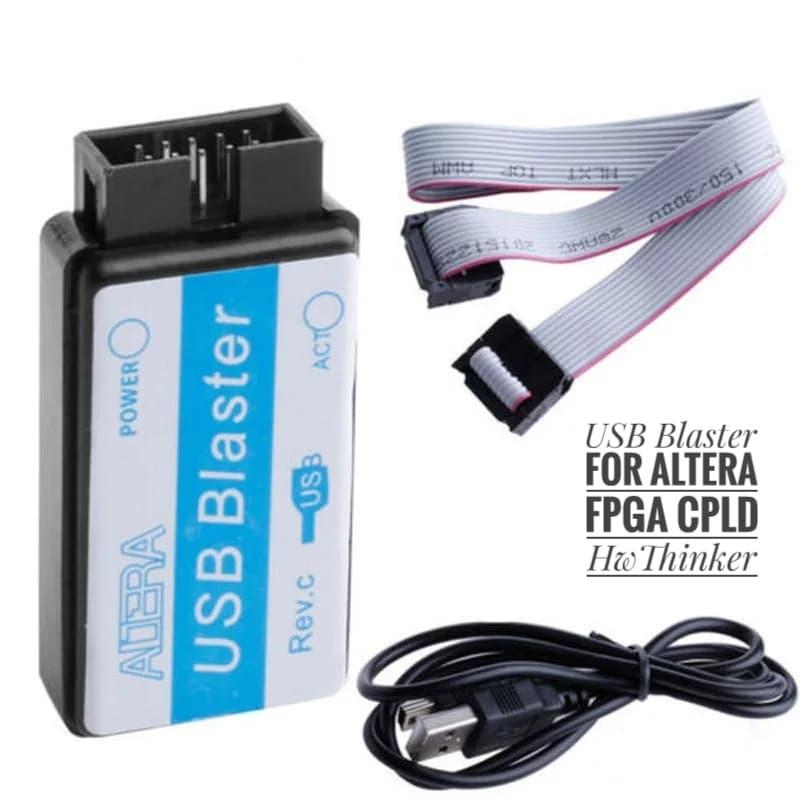

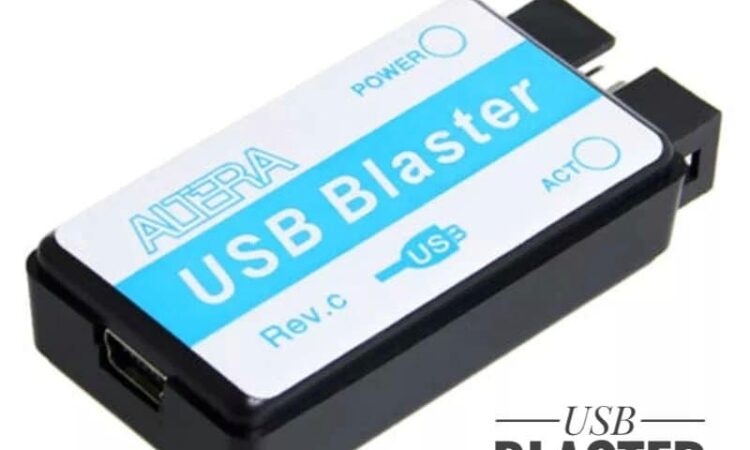

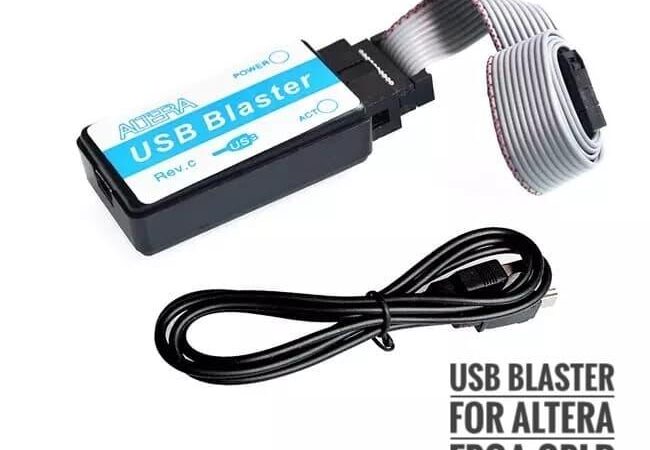

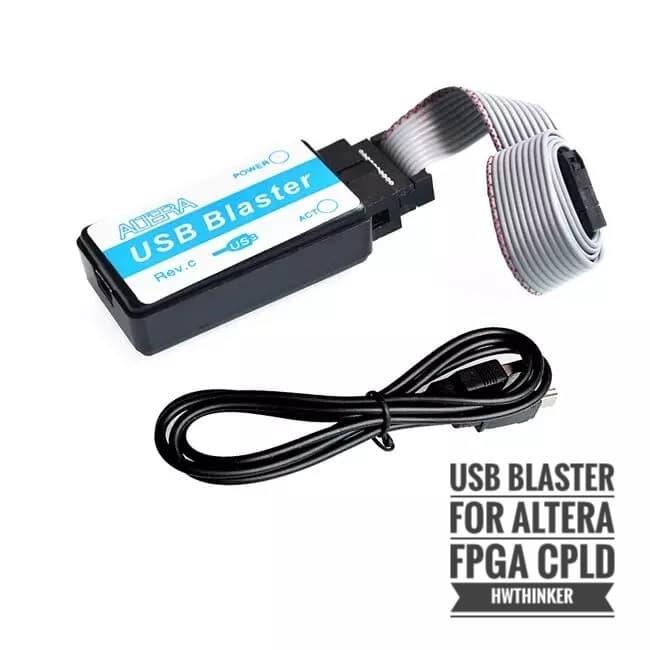

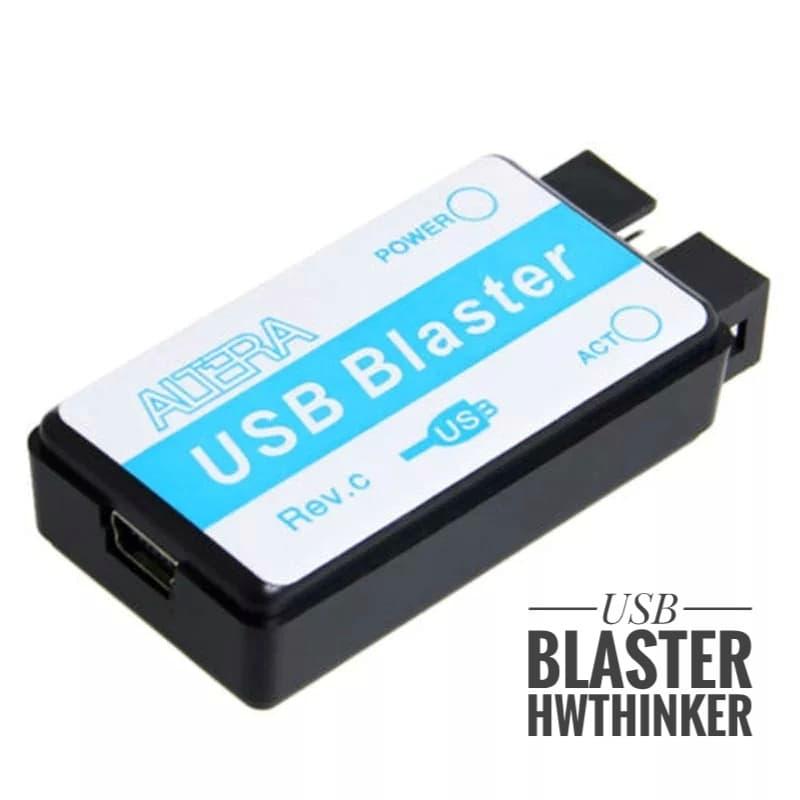

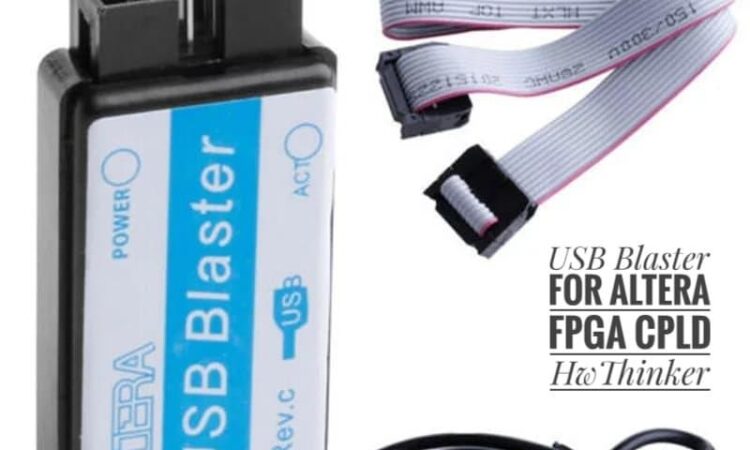

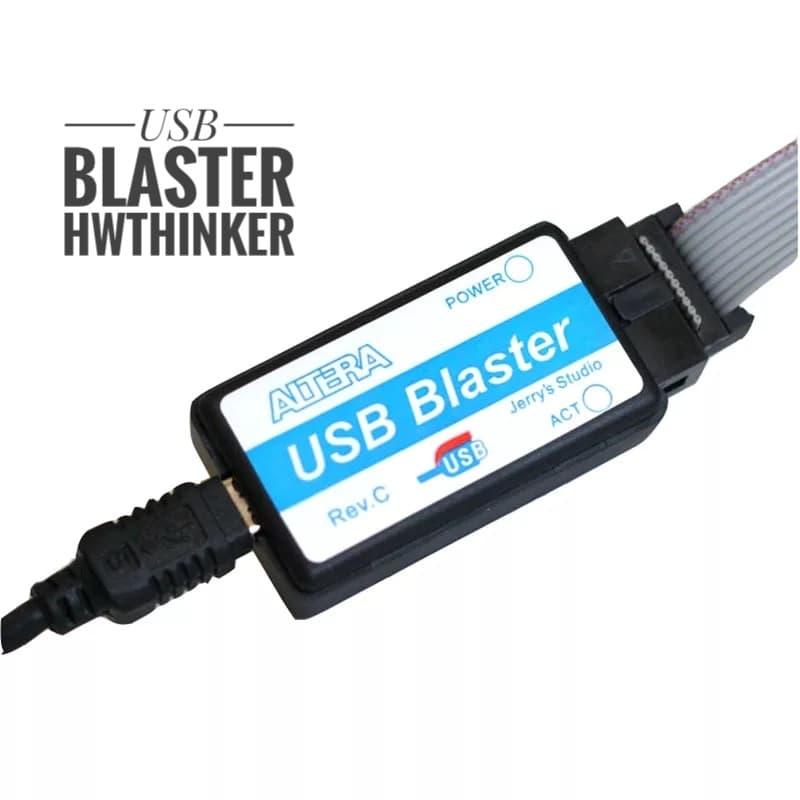

| Paket Inklusif | 1× USB Blaster Programmer, 1× USB cable, 1× 10-Pin JTAG connection cable. |
Definisi
- CPLD/FPGA: Programmable logic devices used in digital circuit design. CPLDs (Complex Programmable Logic Devices) are simpler, while FPGAs (Field-Programmable Gate Arrays) offer higher flexibility.
- JTAG/AS/PS:
- JTAG: Standard interface for debugging and programming.
- AS (Active Serial): Configures devices via serial flash memory.
- PS (Passive Serial): Configures devices passively via a microcontroller.
- SignalTap II: Quartus II tool for real-time signal analysis in FPGAs.
- Nios II: Embedded processor core for FPGA-based systems.
Kualitas baru, bergaransi, dan siap mendukung proyek prototyping hingga produksi! Hubungi kami untuk penawaran khusus.
